PROCEDURE TO CONFIGURE USER CALL PERMISSIONS ON THE NBX 100

The following material clearly describes the Procedure for Setting User Level Call Permissions on the 3Com NBX 100; to obtain information on other equipment refer to the corresponding document.

This material was designed to be used as a working tool for systems personnel directly related to the operation of the data network.

• IP ADDRESS: Unique identifier of a server, station or work team within a network.
• TCP / IP: Data Transport Protocol / Internet Protocol.

CONSOLE: Switch configuration window, it is the interface between the network equipment and the administrator user. The console allows you to configure the different characteristics of the network equipment through commands.

TIMEOUT (timeout): Like many other systems, network equipment needs some time to wait for a response or action, if this does not occur, they should be able to exit their waiting cycle and request another task. The timeout is the one that tells the team how long to wait for a response or action before presenting an error message and proceeding to perform another task.

PROMPT: Console Indicator, the prompt is the place where I can type the console commands to configure the switch.

SWITCH: High-tech equipment that allows me to obtain better performance thanks to its excellent distribution of the transmission channel.

PARITY: Corresponds to a control Bit that is added to the data frame in order to verify if the information sent by the sender corresponds to the same as received by the receiver, this operation corresponds to an error control by means of a simple formula mathematics.

TERMINAL: Software to emulate a workstation through remote access.

Bps: Acronym for Data Bits Per Second.

GATEWAY: Terminal equipment that allows linking a workstation or several to other networks.

SOFTWARE: Set of programs, instructions and documents to solve data processing problems.

LOGIN: Access the equipment through an authorized user.

PASSWORD: Password of an authorized user.

DOWNLOAD: Download files.

REBOOT / RESET: Reboot the computer.

3Com NBX 100 Installation Guide. Release 2.8 3Com NBX 100 Administrator's Guide. Release 2.8

It is important to follow the order of each of the installation standards described in this document in order to ensure the proper and normal operation of the equipment within the parameters of the data network.

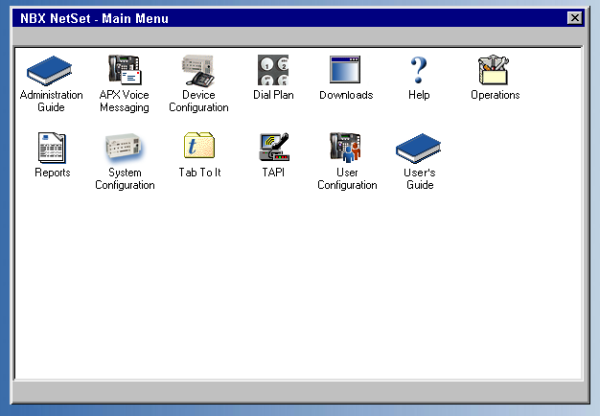

In the main menu click on the User Configuration icon.

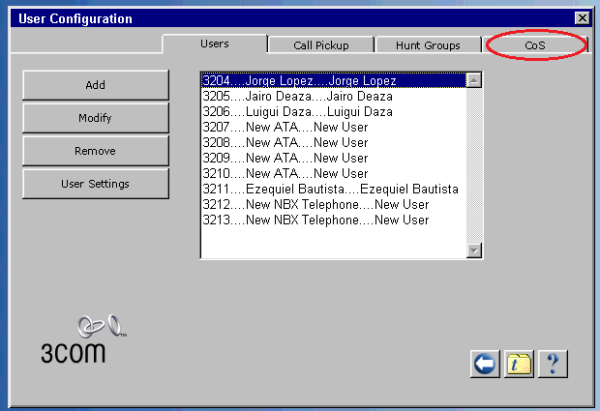

• 1. Click on CoS.

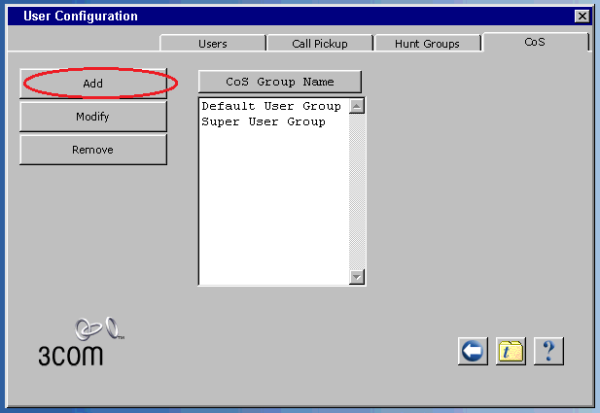

• 2. Click en Add

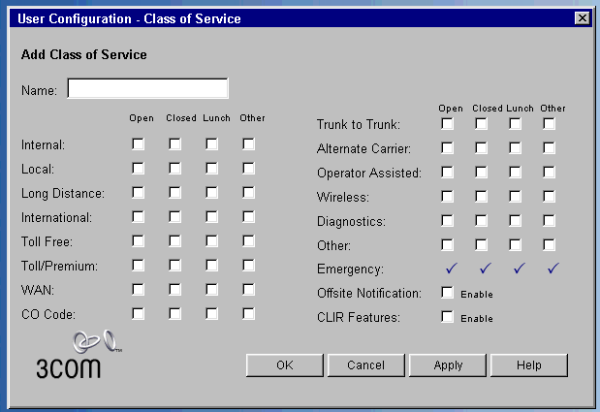

• 3. Fill in the corresponding fields to create the new CoS call permission group (Quality or Service) and click OK.

Call permits are subject to the schedules defined in the NBX (Open, Close, Lunch and Other)

7. MODIFY A GROUP OF CALLING PERMITS.

• 1. In the User Configuration / Users window select click on COS.

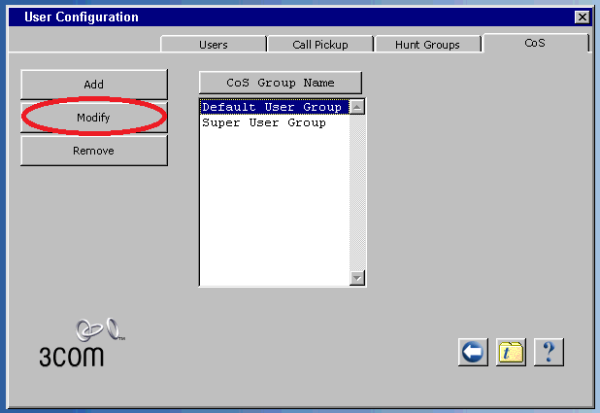

• 2. Select a call permission group and click Modify.

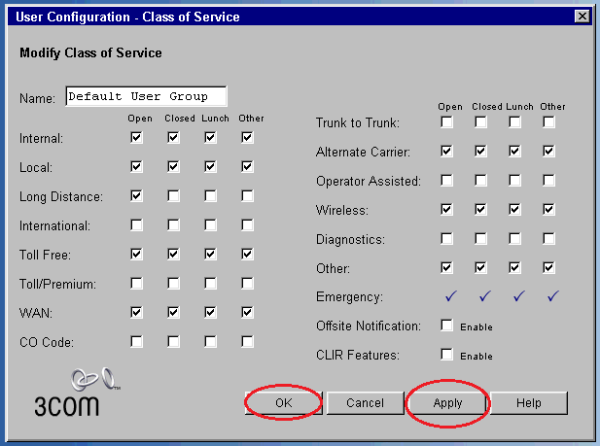

• 3. Make the changes in the required fields. The definition of the fields can be found in table1. If you want to add or Click Apply for the changes to take effect.
• 4. Click OK.

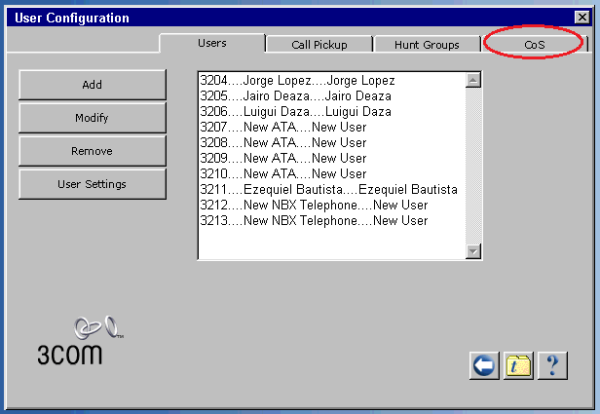

In the User Configuration / Users window select the CoS.

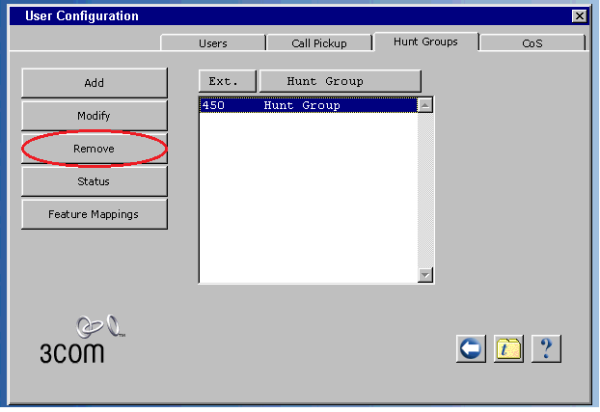

• 5. Select the call permission group that you want to remove and click Remove.

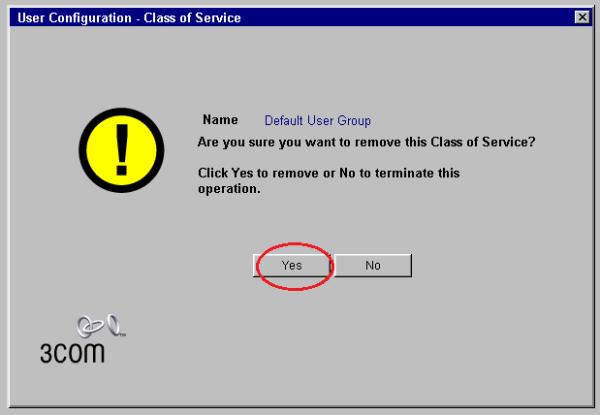

• 6. Click YES when asked if you want to delete the call permission group.
