1. Definition of VLANs in the 3300:

At this time there is no VLAN created, only the default one, and VLANs 2 and 3 will be created

bri vlan cre

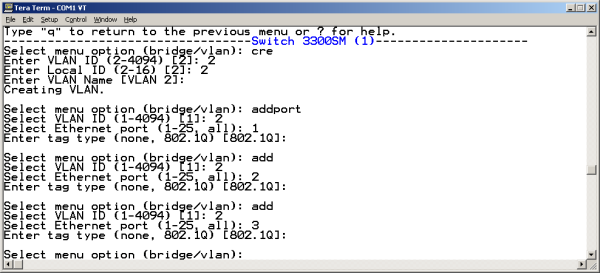

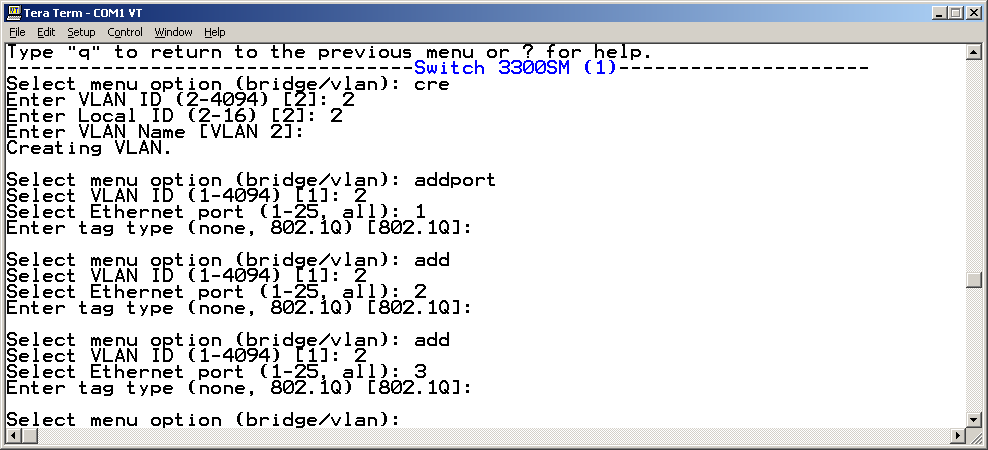

Follow the next screen:

VLAN 2 will have VLAN ID = 2, local ID = 2 and VLAN name = VLAN 2 (These values ​​come by default to choose them).

Add ports 1, 2 and 3 to VLAN 2 with ID 2, and with tagging (these are placed when adding the default ports)

2. Repeat for VLAN3, as is (respective ID, tagging)

3. The PCs in VLAN 2 must have IP addresses belonging to the same subnet as the VLAN interface to which it is connected.

Example: A PC connects to port 2 of the 3300. Port 2 belongs to VLAN 2. VLAN 2 is defined as gateway 192.168.1.10/255.255.0.0. Then the PC must have the IP address 192.168.x.y / 255.255.0.0, and have the default Gateway (from the PC at 192.168.1.10)

— David Gonzalez 2021/04/15 12:27
