AP CONFIGURATION - STANDALONE
In this network scenario, we are going to configure a Ruijie AP independently (without depending on a Gateway or Controller) where it will be connected to a home network that has the following network segment: 192.168.0.0/24.
Also, this AP Ruijie will be offering Wi-Fi network with the segment mentioned above.
1. Topology
The following image shows the topology for this scenario, where we connect the Ruijie AP directly to the home network. We also connected a computer to AP Ruijie by serial cable to verify the addressing taken by DHCP and access via the Web to configure the Wi-Fi network.
2. IP address configuration
After having the Ruijie AP connected to the network, we connected a computer to the AP by serial cable to verify its configuration and check what IP address it took from the Router.
Through the console cable, from the computer we access an SSH client like Putty and configure the port that corresponds to the serious cable. Being connected by console to the AP, we verify what IP address it is taking by DHCP through the command: show ip interface brief.

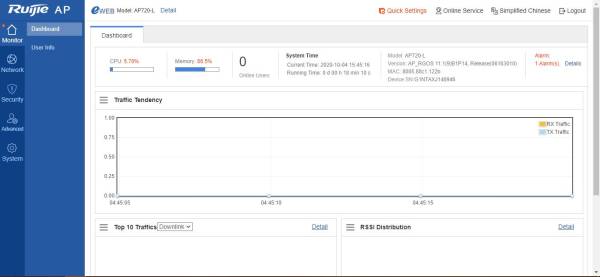

Knowing the IP of the AP Ruijie, we access via the Web, where initially the information of CPU, RAM memory, AP information and traffic information will appear.
