How to change AP to be macc mode?

Please use the following command to configure AP to macc, fit or fat mode

Ruijie#ap-mode macc

Ruijie#ap-mode fit

Ruijie#ap-mode fat

Notice: AP will reboot when changing mode.

ruijie_cloud_service_v3.4.1_user_guide.pdf

What is the default password of Ruijie AP？

Fat/Macc ap :

default web magagement username/password: admin/admin
default console password: admin
default telnet password: admin
no enable password

Fit ap:

default web magagement username/password: admin/admin
default console password: ruijie
default telnet password: ruijie
default enable password: apdebug

rg-macc_2.0_quick_start_guide_en.pdf

What can I do if the AP is online but stuck on “Not Synced” status

There are several steps needed to be checked, the contents are shown as below:

Device Firmware

CWMP Configuration

Config Status

Device Firmware Ensure devices (AP and Switch)’s versions are up to date.

Notes: Cloud configure Facebook Auth or external portal auth with HTTPS URL, this requires to upgrade AP firmware to B40P9 or later.

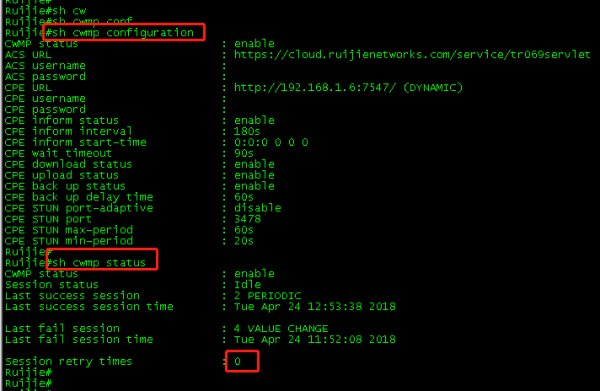

CWMP Configuration Use command “show cwmp config” on device’s CLI and check whether the CWMP URL and CWMP Interval(180s) are correct.

Quick Provisioning

1) Connect the console cable to a device, enter the command line interface, and run required commands below.

For details of accessing the command line interface, refer to the Console Management chapter of WLAN-COOKBOOK. The CWMP configuration is the same for APs, switches and EGs.

  Ruijie(config)#cwmp
  Ruijie(config-cwmp)#acs url http://cloud.ruijienetworks.com/service/tr069servlet
  Ruijie(config-cwmp)#cpe inform interval 180
  Ruijie(config-cwmp)#end
  *Jun 27 16:31:47: %SYS-5-CONFIG_I: Configured from console by console Ruijie#wr

Management IP address and DNS domain should be configured correctly for Internet access.

Command to configure the DNS server: Ruijie(config)#ip name-server 8.8.8.8 8.8.4.4

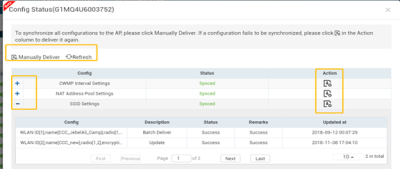

Config Status Go to MONITORING → DEVICE →Access Point, select the device which showing synced fail, click “synced fail” to check the details.

To synchronize all configurations to the AP, please click Manually Deliver. If a configuration fails to be synchronized, please click in the Action column to deliver it again.

If above steps cannot solve the problem, you can use command perform factory-reset for testing.

Command:

AP(config)#apm factory-reset
