USER MODE UPGRADE (RECOMMENDED)

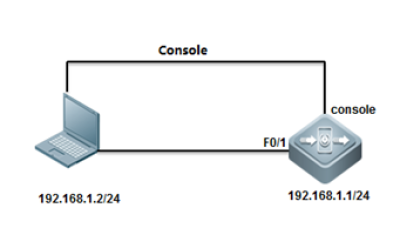

1. Network Topology
2. Configuration Steps
2.1. Configure MGMT IP
Ruijie>enable ——>enable mode
Ruijie#configure terminal ——>enter global mode
Ruijie(config)#interface vlan 1 ——>interface mode
Ruijie(config-if)#ip address 192.168.1.1 255.255.255.0 ——>configure MGMT ip
Ruijie(config-if)#exit

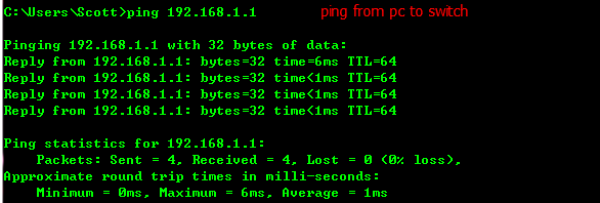

2.2、Check ping connectivty
Notice: disable PC firewall during the whole process

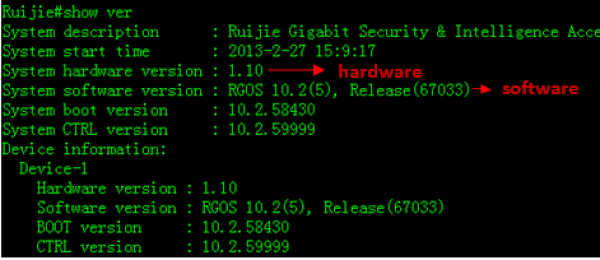

2.3. Check running firmware version

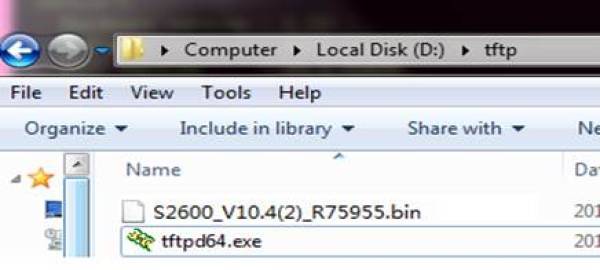

2.4 Put tftp client and upgrade package in the same folder

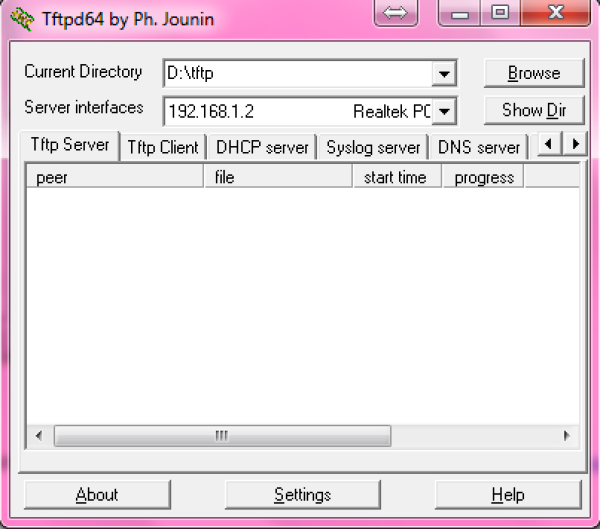

2.5 Enable TFTP server
2.6 Login the switch

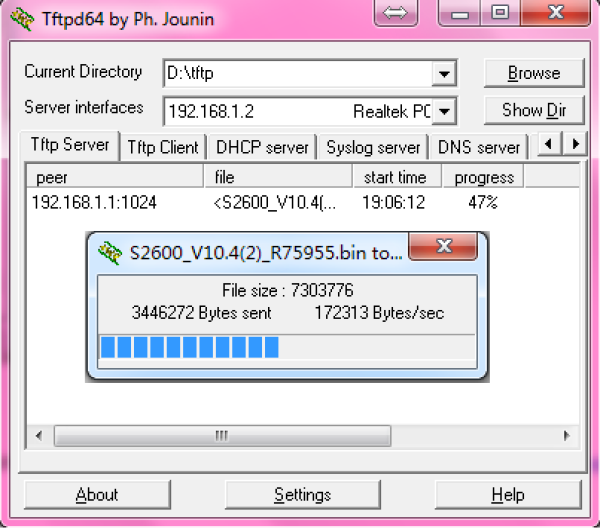

Copying firmware

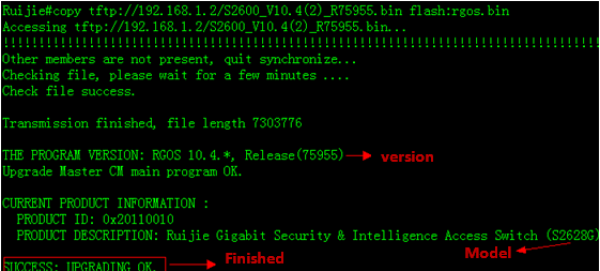

2.7 File transfer finished
2.8 Reboot the switch

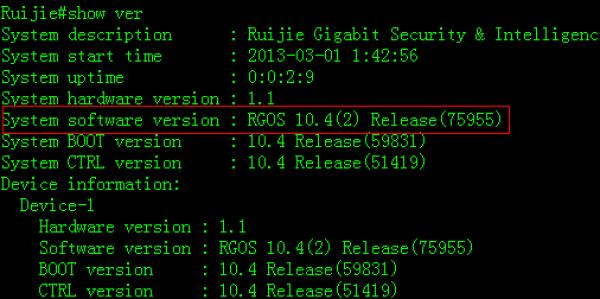

2.9 Check rebooting process
